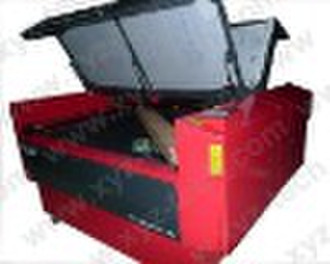

Laser Cutting Machine EXLAS1613

LaserCutting MachineEXLAS1613: 1) Working Travel Area: 1600 x 1300mm,1600mm width with infinity material-feeding 2) Laser power: 150W (180W for option) 3) Laser type: carbon dioxide laser tube 4) Max Engraving speed: 1,200mm/s 5) Max Cutting speed: 500mm/min (80w, 10mm thick of acrylic) 6) Resetting positioning accuracy: <0.015mm 7) Cutting depth: acrylic 0-25mm 8) Min. shaping character: Chinese character 1.5mm, crisscross-row 1mm 9) Power supply: 220V±10% 50Hz or 110V±10% 60Hz 10) Gross power: 1,800W 11) Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD 12) Graphic format supported: *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support 13) Engraver for curve surfaces: we can add a Rotary attachment on the laser engrave/cutting machine, then the machine can engrave on cylinder 14) Circulating-water-cooling: yes 15) Up-down Range of Working Table: Mechanical 260mm (up and down by hand) 16) Laser tube (life hours): 10,000hours 17) Assistant equipment: water pump, exhaust fan, aluminum alloy worktable 18) Optional spare parts: Rotary system, Motorized up-down table, Cooling water system, Red-light position, DSP Off-line operation with usb flash 29) Recommended spare parts / consumables: laser tube and lens 20) English LCD 21) USB interface 22) Supports CAD and CorelDraw output directly The new version has the following advantages:
